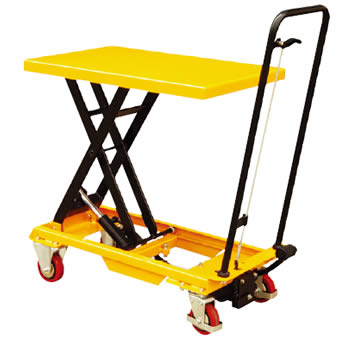

Lift Table
Product Model :
  • AS20
  • AS30
  • AS50
  • AS80
  • AS35D

Lift Table      AS series

* Economic range but reliable.
* New design to meet norm EN1570: 1999.
* New hydraulic system increases safety and protects your goods, stepless rate of lowering system remains irrespective of the weight of the load.



 Model    AS20    AS30    AS50    AS80    AS35D
 Capacity    (kg)    200    300    500    800    350
 Table Size    LxW (mm)    700x450    852x502    852x502    920x520    920x520
 Table Height    Hmin/Hmax (mm)    265/755    330/910    390/910    442/1000    435/1500
 Handle Height    h (mm)    980    1100    1100    1130    1130
 Wheel Dia.    (mm)    Φ100    Φ125    Φ125    Φ150    Φ150
 Overall Size    BxC (mm)    450x870    502x1050    502x1050    520x1170    520x1170
 Foot Pedal to Max. Height    25    30    40    70    70
 Net Weight    (kg)    44    74    81    114    125
