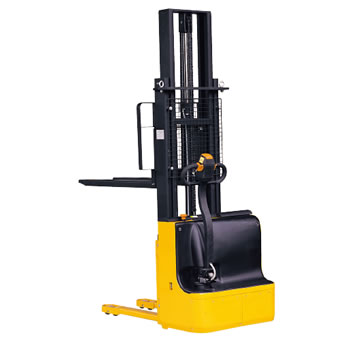

Full Electric Stacker
Product Model :
  • FN1225AC
  • FN1229AC
  • FN1233AC
  • FN1525AC
  • FN1529AC
  • FN153

Full Electric Stacker     FN series

* Tiller arm is mounted on one side for optimum control and visibility.
* High-comfort tiller grip reduces fatigue, improving productivity.
* Heavy-duty design with top quality mast construction.
* Powerful drive and power unit made in Europe.
* Top quality electronic control system from Curtis.
* Multi-function handle includes crawl button, butterfly travel speed
  controls and lift/lower control offer variable speed adjustment.
* Conforms to EN1757-1:2001, EN 1726.


Model

FN1225AC

FN1229AC

FN1233AC

FN1525AC

FN1529AC

FN1533AC

Capacity

(kg)

1200

1200

1200

1500

1500

1500

Lifting Height

(mm)

2450

2900

3300

2450

2900

3300

Min. Fork Height

(mm)

90

90

90

90

90

90

Load Centre

(mm)

600

600

600

600

600

600

Fork Length

(mm)

1150

1150

1150

1150

1150

1150

Fork Overall Width

(mm)

540

540

540

540

540

540

Driver Wheel

Φ250mm, 1200W/24V (AC)

Power Pack

(KW/V)

1.2/24

Traction Battery

(Ah/V)

165/24

Net Weight (kg)

648

670

691

658

680

701

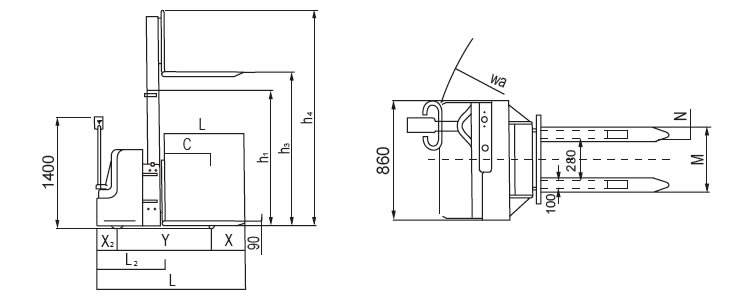

Dimension

X2 (mm)

190

190

190

190

190

190

L2 (mm)

774

774

774

774

774

774

h1 (mm)

1800

2025

2025

1800

2025

2025

h4 (mm)

3094

3546

3946

3096

3546

3946

X (mm)

455

455

455

455

455

455

Y (mm)

1279

1279

1279

1279

1279

1279

L (mm)

1924

1924

1924

1924

1924

1924

N (mm)

160

160

160

160

160

160

h3 (mm)

2450

2900

3300

2450

2900

3300

Wa (mm)

1540

1540

1540

1540

1540

1540
