Garden Lift Table
Product Model :
  • HMB200
  • HMB300
  • HMB500
  • HMB750
  • HMB501
  • HMB300D

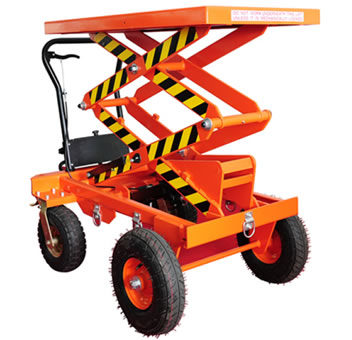

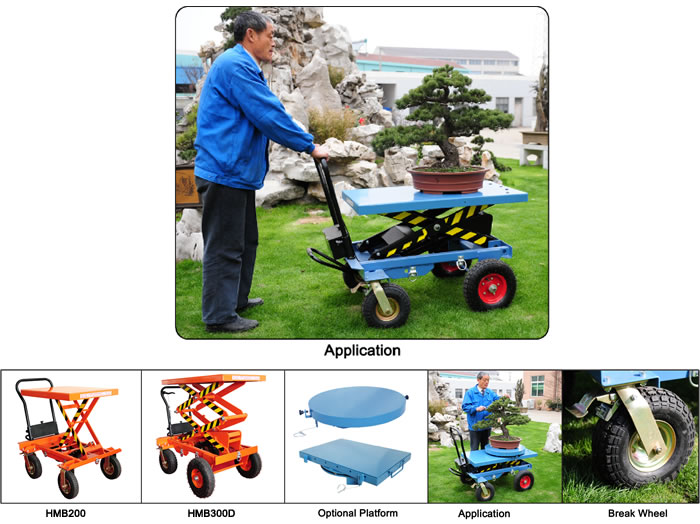

Garden Lift Table    HMB Series

* Heavy duty range
* Handle with tool box neumatic tires with brake system
* New design to meet norm EN1570: 1999
* New hydraulic system with overload valve


Model

HMB200

HMB300

HMB500

HMB750

HMB501

HMB300D

Type

Single Scissor

Single Scissor

Single Scissor

Single Scissor

Single Scissor

Double Scissor

Capacity

(kg)

200

300

500

700

500

300

Table Height

(mm)

380/870

410/1000

545/1110

545/1110

345/1180

545/1700

Table Height with Option Platform

(mm)

458/948

488/1078

630/1195

630/1195

423/1258

630/1785

Handle Height

(mm)

910

975

975

975

975

975

Table Size

(mm)

700×520

850×520

1010×520

1010×520

1220×610

1010×520

Option Platform Size

(mm)

Φ600

Φ600

710×500

710×500

Φ600

710×500

Overall Size

(mm)

922×690×910

1065×690×975

1200×720×975

1270×720×975

1583×800×975

1270×720×975

Front Pneumatic Tires

(mm)

Φ200

Φ200

Φ330

Φ330

Φ300

Φ330

Real Pneumatic Tires

(mm)

Φ200

Φ200

Φ250

Φ250

Φ200

Φ250

Foot Pedal

(times)

16

20

30

40

35/70

40

Net Weight w/o Option Platform

(kg)

60

85

126

130

175

145

Net Weight of Option Platform

(kg)

24

24

40

40

24

40
