Electric Stacker
Product Model :
|

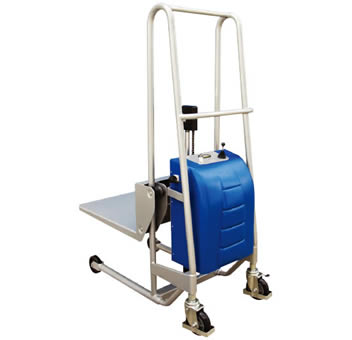

Electric Stacker NE series
* A range of highly manoeuvrable, lightweight lifts, designed to take the strain out of any lifting job from ground level to over shoulder height.
* Ideal for use in narrow aisles and confined spaces. Perfect for all applications from pharmaceutical to catering, from packing line to food processing , from warehouse to office, kitchens, laboratories, retail outlets etc…
Quick lift pump provides high efficiency.
* No-marking castor as standard.
* Conforms to EN1757
|

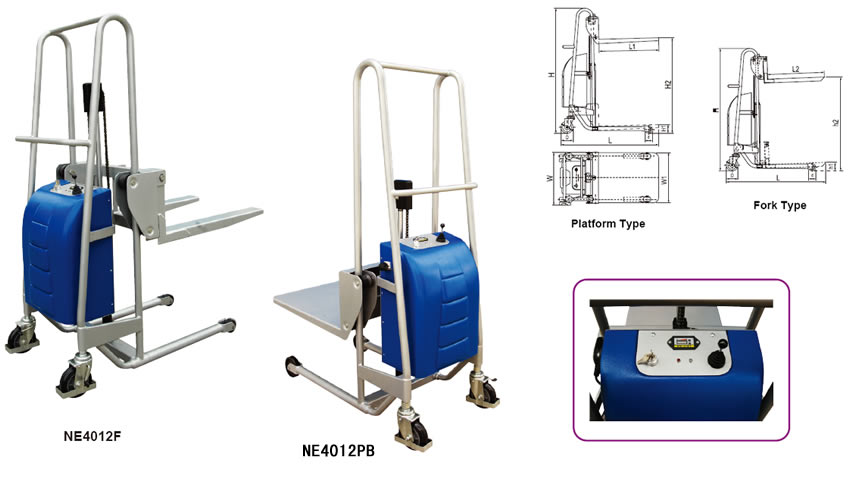

Model (Adjustable Fork) |
|
NE4012PA |
NE4012PB |
NE4012F |
|
Type |
Platform |
Adjustable Fork |
||
|
Capacity |
(kg) |
400 |
400 |
400 |
|
Max. Fork Height |
H2 (mm) |
1210 |
1270 |
— |
|
Min. Fork Height |
H1 (mm) |
90 |
150 |
90 |
|
Platform Length |
L1 (mm) |
670 |
670 |
— |
|
Platform Width |
W1 (mm) |
590 |
590 |
— |
|
Fork Height Min. |
h1 (mm) |
— |
— |
90 |
|
Fork Height Max. |
h2 (mm) |
— |
— |
1210 |
|
Fork Length |
L2 (mm) |
— |
— |
700 |
|
Single Fork Width |
(mm) |
— |
— |
90 |
|
Fork Width |
W2 (mm) |
— |
— |
190-572 |
|
Dia of Front Wheel |
D (mm) |
Φ75 |
Φ75 |
Φ75 |
|
Dia of Steering Wheel |
d (mm) |
Φ125 |
Φ125 |
Φ125 |
|
Power Pack Motor |
(KW) |
0.8 |
0.8 |
0.8 |
|
Battery |
(V/Ah) |
12/70 |
12/70 |
12/70 |
|
Overall Height |
H (mm) |
1610 |
1635 |
1610 |
|
Overall Width |
W (mm) |
620 |
620 |
620 |
|
Overall Length |
L (mm) |
1190 |
1190 |
1270 |
|
Net Weight |
(kg) |
116 |
118 |
117 |
