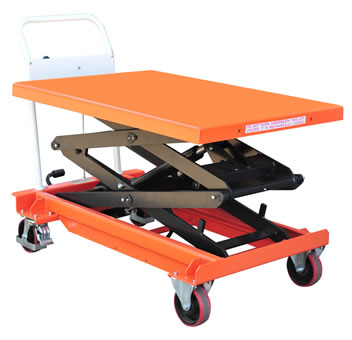

Lift Table BS50LD / BS100LD
Product Model :
|
Lift Table BS50LD / BS100LD
- Heavy duty design, very reliable performance.
- Lift with pump pedal, manual control of lowering
- Easy to service, with inspection supports.
- Good hydraulic system increases safety and protects your goods.

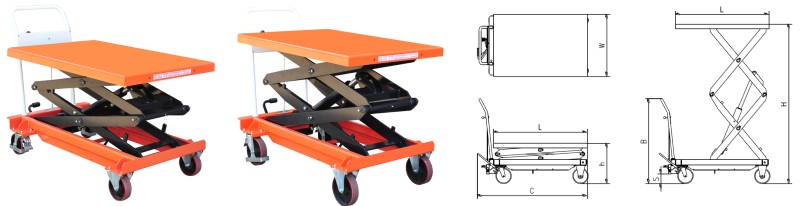

| Model | BS50LD | BS100LD | |
| Capacity | (kg) | 500 | 1000 |
| Table Size | LxW (mm) | 1200x800 | 1200x800 |
| Max. Fork Height | H (mm) | 2000 | 2000 |
| Min. Fork Height | h(mm) | 470 | 520 |
| Handle Height | B(mm) | 1030 | 1080 |
| Ground Clearance | s(mm) | 68.5 | 125 |
| Wheel Dia. | (mm) | Φ160 | Φ200 |
| Lowering Time | (sec) | 22 | 44 |
| Foot Pedal to Max. Height | Number of times | 179 | 255 |
| Overall Size | C×W(mm) | 1430x800 | 1430x800 |
| Net Weight | (Kg) | 222 | 242 |
