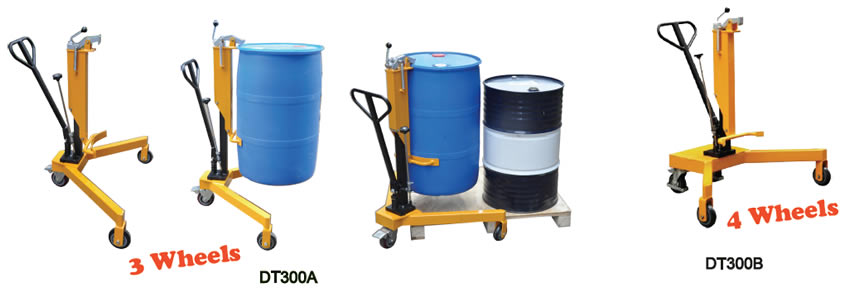

Drum Truck DT300A·DT300B
Product Model :
  • DT300A
  • DT300B



Drum Truck           DT300A·DT300B

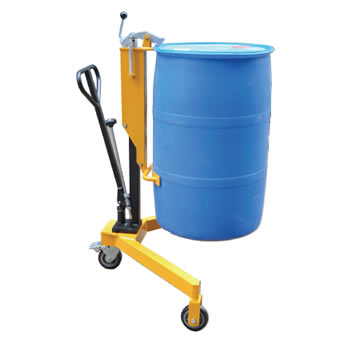

* Easily glides over pallet to quickly load or unload 55-gallon drums, Grabs drums from the middle of a standard pallet with a drum claw grab,
raises the drum up, and redistributes them throughout the facility.
* Also removes drums from the corner of containment skids.





Model



DT300A

DT300B

Lifting Capacity

(kg)

300

300

Lifting Height

(mm)

290

290

Suitable for



Steel Drum:Φ572600mm (55 gallon)
Plastic Drum:Φ582
600mm (210 liter)

Steel Drum:Φ572600mm (55 gallon)
Plastic Drum:Φ582
600mm (210 liter)

Inner Width of Two Front Wheels

mm

1010

1010

Dia of Front Wheel

mm

Φ125×50

Φ125×50

Dia of Steering Wheel

mm

Φ125

Φ125

Overall Dimension

mm

640×1120×1080

740×1100×1080

Net Weight

(kg)

43

47
