High Lift Scissor Truck
Product Model :
  • JL5210
  • JL6810
  • JL5215
  • JL6815

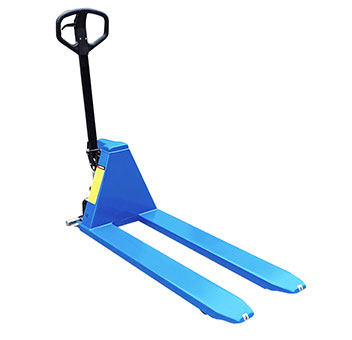

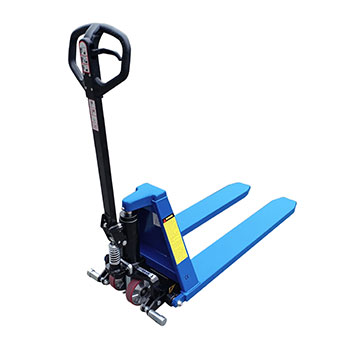

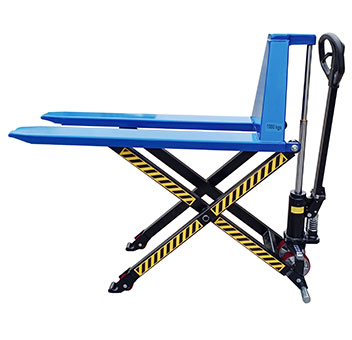

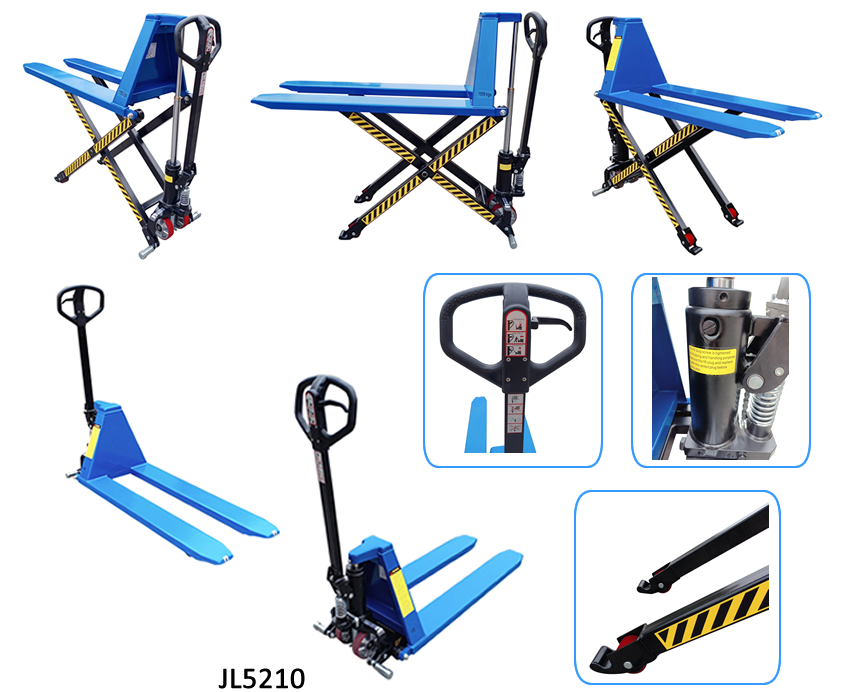

High Lift Scissor Truck JL series

New design with larger piston offer you real 1000kg and 1500kg capacity

* Character: Extremely easy to pump and light make this unit very suitable as combined hand pallet truck and lift table.
* Quick-lift as standard with automatic transfer to normal lifting with loads over 150kg.
* Automatic descending speed control by a uniquely hydraulic valve, the descending speed always keeps same regardless the truck with or without load. It will prevent cargo damage from fast descending.

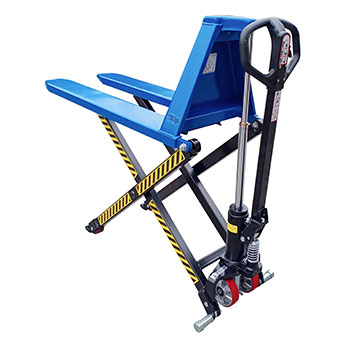

* Front support legs and adjustable stabilizers extended to the floor automatically when the forks reach a height of 420mm, to ensure maximum stability and optimum braking.
* Ergonomic warm handle offers you simple and comfortable operation.
* Heavy duty design: 4mm steel plate fork frame and larger lift piston ensure the truck to reach rated capacity.

* Conforms to EN1757-4.



 Model



 JL5210

 JL6810

 JL5215

 JL6815

 Capacity

(kg)

 1000

 1000

 1500

 1500

 Max. Fork Height

(mm)

 800

 800

 800

 800

 Min. Fork Height

(mm)

 85

 85

 85

 85

 Fork Overall Width

(mm)

 520

 680

 520

 680

 Fork Length

(mm)

 1140

 1140

 1100

 1100

 Dimension

C (mm)

 600

 600

 560

 560

E (mm)

 530

 530

 530

 530

H (mm)

 1250

 1250

 1250

 1250

 Net Weight

(kg)

 105

 112

 118

125
