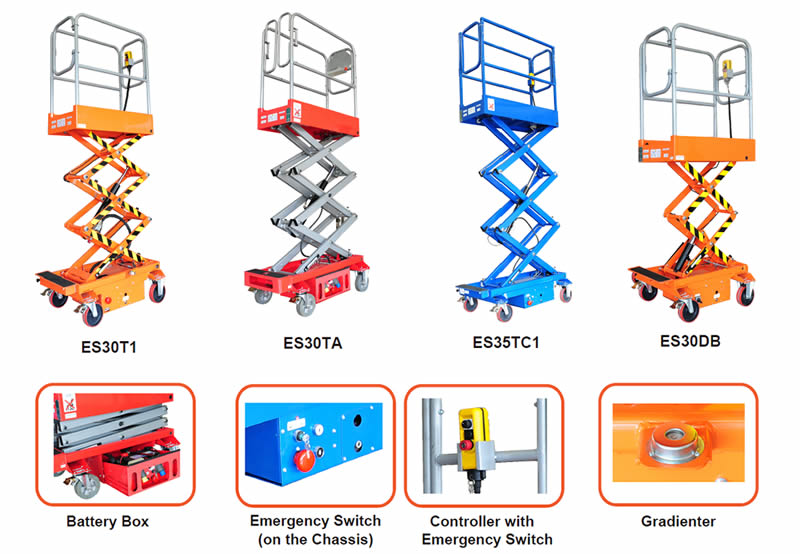

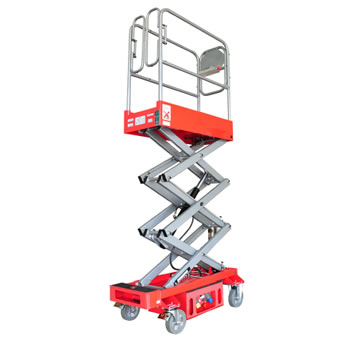

Scissor Aerial Work Platform
Product Model :
  • ES30T1
  • ES30TA
  • ES35TC1
  • ES30DB

Scissor Aerial Work Platform   ES Series

* Explosion-proof lock valve to avoid a sudden drop if emergency occurs.
* Equip two emergency switch : one is on the controller, one is on the chassis which could be operated on the ground.
* Electric lifting & manual propel
* Wheels will be self-locking when the platform is lifted.
* Emergency Switch could freeze the work platform immediately.
* Overload protection facility is equipped on, the lift will not work when overloaded.
* All the work platforms are passed 1.2 times loading test before leaving factory.
* Guarantee: 12 months, we supply spare parts free and supply technical supporting all the time.
* This type aerial work platform is widely used for aerial work, decoration, street lamp maintenance and building cleaning etc.
* Conforms to EN280, EN1570 and ANSI/ASME safety standard.








Model

ES30T1

ES30TA

ES35TC1

ES30DB

Capacity

Kg

240

240

240

240

Table Size

mm

1020×520

1110×520

1310×520

1010×520

Max. Working Height

mm

4550

5000

5500

3600

Max. Platform Height

mm

2550

3000

3500

1600

Overall Size

mm

1260×700×1730

1260×780×1810

1460×780×1830

1165×700×1660

Min. Ground Clearance

mm

50

50

50

50

Wheel Base

mm

870

940

1140

770

Rising/ Descending Speed

s

30/25

20/16

29/27

8/7

Electric Motor (DC)

V/Kw

12/0.8

12/0.8

12/0.8

12/0.8

Battery

V/Ah

12/80

12/80

12/80

12/80

Charger

V/A

12/8

12/8

12/8

12/8

Wheel Size

mm

Φ200

Φ200

Φ200

Φ200

Net Weight

Kg

355

332

362

235
