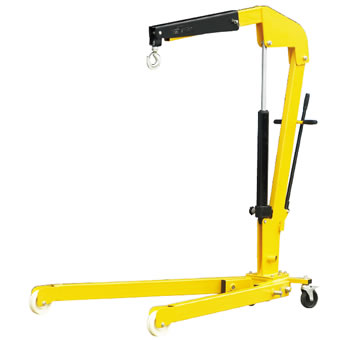

Foldable Shop Crane
Product Model :
  • SC500B
  • SC1000B
  • SC2000B

Foldable Shop Crane       SC.B series

* Unique technology of quick lifting by double action pump.
* Larger capacity than normal shop cranes at 3 position.
* Chrome plated lifting piston and pump piston.
* Relief valve to prevent overload.
* 360° swivel operating handle.
* Forged heavy duty swivel hook.
* 125% overload testing before delivery.
* Delivered flat packed for saving space.
* Conforms to CE safety standard.

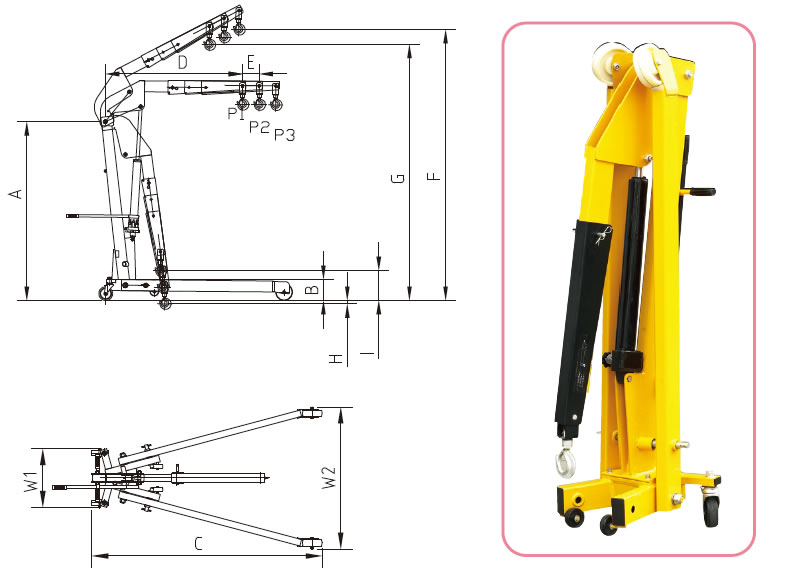

Model

Capacity at Position (kg)

Dimensions (mm)

Overall Width (mm)

Net Weight

P1

P2

P3

A

B

C

D

E

F

G

H

I

SC500B

500

425

350

1410

165

1510

895

102

2120

1960

150

340

970

75

SC1000B

1000

800

700

1675

90

1630

1230

150

2445

2330

—

245

1120

115

SC2000B

2000

1700

1500

1690

205

1900

1290

150

2705

2505

—

230

1165

165
